Description

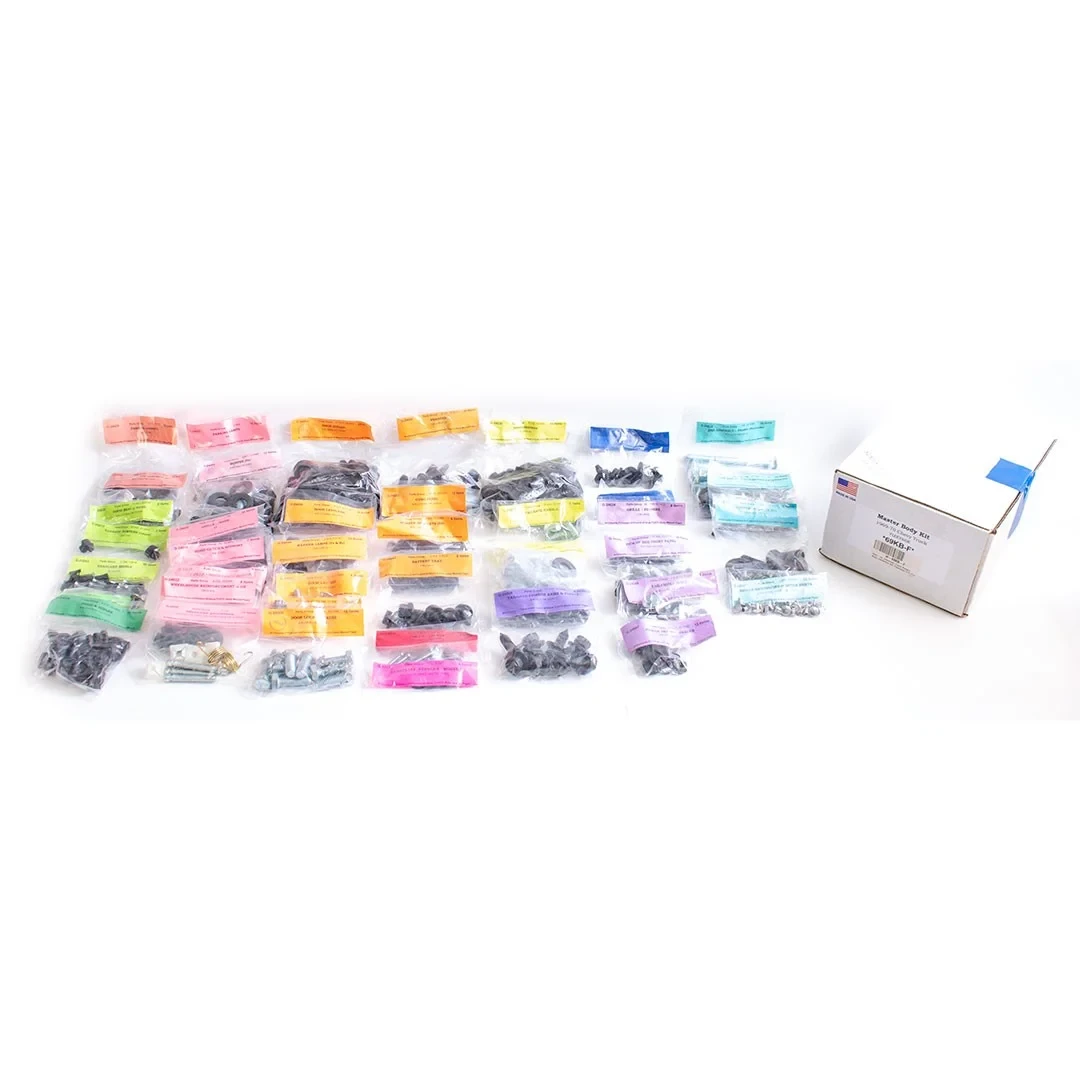

The authentic hardware you need to correctly reassemble the engine components which attach to the long-block. Most fasteners are either meticulous reproductions or New Old Stock. Most items are made in USA to the same standards required by Chrysler. Note: Image is for reference only, actual kit will vary
Master Chassis Hardware Kit Includes:
| Part# | Application | Notes | Pcs |
| C-8027 | Differential Carrier Cover - 9 3/4 | 3/8" Hx Flng Bolts "E" | 10 |
| C-8084 | Engine Insulator > Eng Brkt - Exc Hemi | Hx Nuts,Coni Wa's | 4 |
| C-8086 | Engine Mount Brackets - 383/440 | Hx Bolts, 5/8 Nuts, Flat Wa's | 19 |
| C-8088 | Engine Insulator > Body - V8 Exc Hemi | Hx Bolts "38", Coni Wa's | 4 |
| C-8095 | Trans Insulator > Crossmember | Lock Nut | 1 |
| C-8105 | Strut Rod > K-Frame (B & E Body) | 5/8-11 Lock Nuts | 4 |
| C-8106 | Driveshaft > Flange | Straps,Hx Bolts, Split Wa's | 10 |
| C-8109 | Shocks (Fr) - Lwr Mounting | Hx Bolts 'TR" Or "D", Lock Nuts | 4 |
| C-8112 | Leaf Spring Mounting @ Front | Hub Bolts, Coni Keps | 16 |
| C-8113 | Shackles - Nuts Only | Hx Nuts | 4 |
| C-8115 | Axle Housing > Springs | 1/2-20 X 7.12 U-Bolts, Lock Nuts | 12 |
| C-8117 | Suspension Bumper Brkt > 8 3/4 Axle | Hx Coni Sems "Anchor" | 2 |
| C-8118 | Suspension Bumpers (Rr) | Hx Coni Sems "Anchor" | 4 |
| C-8119 | Shocks (Rr) - Upr Mounting | Hx Bolts, Lock Nuts | 4 |
| C-8120 | Shocks (Rr) - Lwr Mounting | Hx Nuts Only | 2 |
| C-8124 | Steering Gear (B Body) | Hi-Hx Hd Bolts, Split Wa's | 6 |
| C-8131 | Gas Tank | J-Bolts, Lock Nuts | 4 |
| C-8133 | Differential Carrier - 8 3/4 | Nuts w/ Nylon Patch | 10 |
| C-8157 | Suspension Bumper Brkt > 9 3/4 Axle | Hx Coni Sems "Anchor" | 3 |
| C-8175 | Suspension Bumpers (Fr) | Hug-Lok Nuts | 4 |
| C-8177 | Brake Drum Retainers | 1/2" Stud, Green Push On Retain | 6 |
| C-8178 | Steering Linkage | Tri-Slot Nuts, Cotier Pins | 12 |
| C-8192 | Wheel Cylinders (4) W 5/16-18 | 5/16-18 Hx Ext Sems | 8 |
| C-8202 | Brake Cable Tension Adjuster | Flange Lock Nut Only | 1 |
| C-8203 | Proportioning Valve > Apron | Red Flange Lock Nut | 1 |
| C-8208 | Stabilizer Bar Center Supports | Hx Coni Sems, Hx Nuts | 8 |
| C-8212 | Control Arms (Upr) | Cam Bolts, Washers , Nuts | 16 |
| C-8214 | Leaf Spring Mounting @ Front | "H" Marked Bolts, Marsden Nut | 4 |
| C-8215 | Idler Arm | 'TR" Hex Bolt, Tri-Slot Nut, Pin | 3 |
| C-8216 | K-Frame > Body | Special Hex Coni Sems | 4 |
| C-8219 | Trans Crossmember | Hx Bolts, Flat Wa's, Lock Nuts | 16 |
| C-8220 | Trans Insulator > Trans | Hx Coni Sems | 2 |
| C-8222 | Axle Retaining Nuts | Hx Lock Nuts, Flng Nuts | 10 |
| C-8223 | Ball Joints W Drum Brakes | Hx Bolts, Slotted Nuts, Pins | 12 |
| C-8226 | Pitman Arm | Nut, Split Wa | 2 |
| C-8227 | Brake Assembly (Front Drum) > Spindle | Hx Bolts, Split Wa's, Nuts | 12 |
| C-8228 | Brake Hoses > Bracket Clips | U-Clips | 3 |
| C-8330 | Parking Brake Control > Body | Hx Coni Sems, Coni Keps | 3 |
| C-8332 | Master Cylinder | Hx Lock Nuts | 4 |
| C-8333 | Master Cylinder Support Plate | Coni Keps, Ext Keps, Sealer | 4 |
| C-8336 | Brake Booster | Hx Lock Nuts | 4 |
| C-8337 | Wheel Cylinders (4) W 1/4-20 | Hx Flng Screws | 8 |
| C-8338 | Accelerator Pedal (B & E Body) | Coni Keps,Coni Sems | 6 |
