Headlight System Kit – 1969 Camaro Rally Sport
Transform your 1969 Camaro with this complete and technically correct Hideaway Headlamp System Kit, packaged in a heavy-duty double-wall logo box for protection and convenience.
This all-in-one solution includes every mechanical, electrical, and vacuum component needed to install or restore the factory Rally Sport hidden headlamp system. Each part is made to OEM specifications and assembled in the USA, ensuring reliable function and show-quality results.

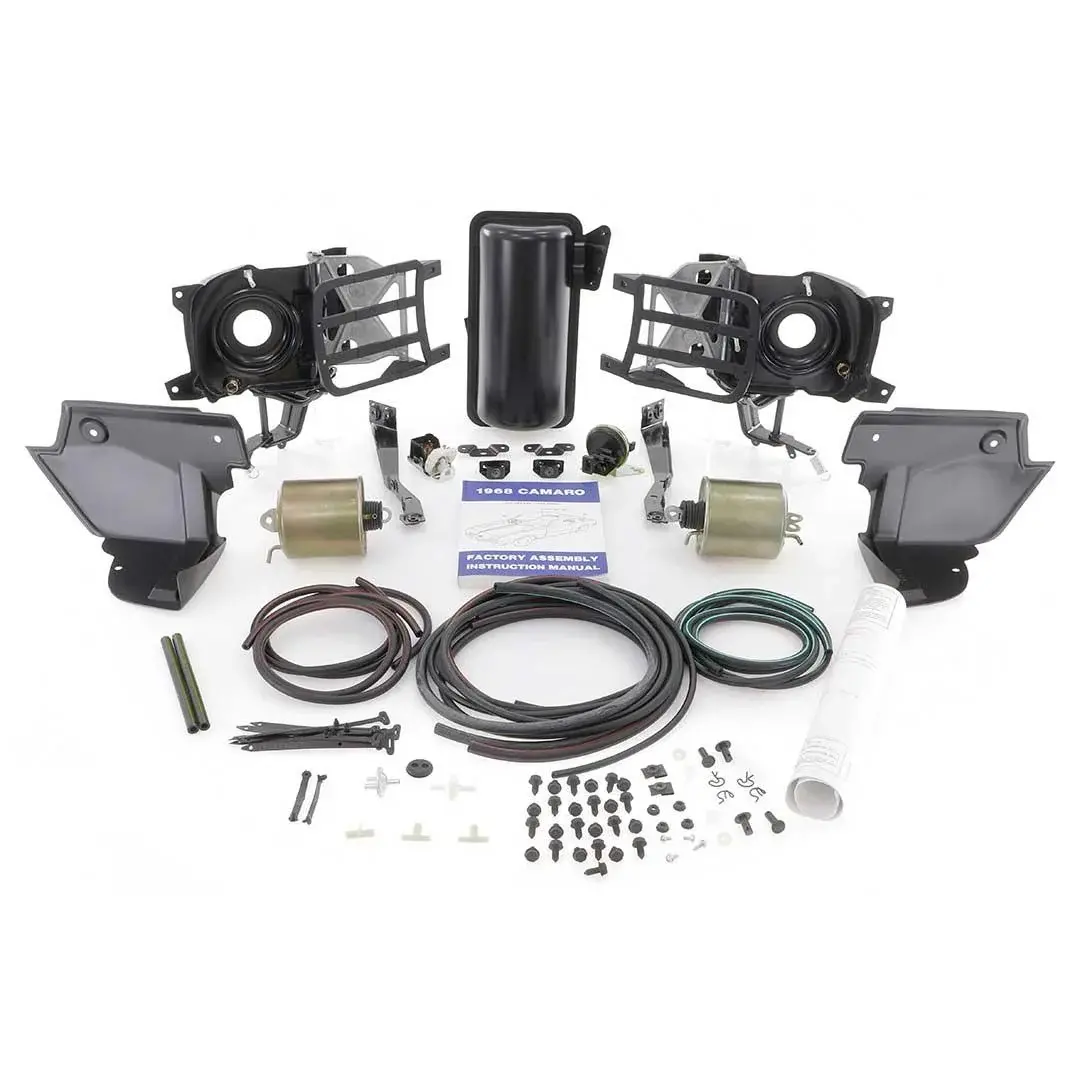

The kit contains RH and LH headlamp assemblies, including:
-
Headlamp housing with installed hinge plate bumper
-
Hinge plate and door cover backing plate
-
Bellcrank and bellcrank support bracket
-
Over-center spring
-
Correct sealed beam adjusting screws and spring
-
All bushings and necessary mounting hardware
To ensure proper installation, the kit also includes a 1969 490-page Assembly Manual, featuring a detailed 17-page illustrated section, as well as fenderwell templates to modify standard front fenderwells for RS compatibility.
Additional Components Included:
-
Headlamp switch
-
Vacuum relay assembly
-
Core support door stop brackets (pair)
-
Two vacuum actuators
-
Vacuum tank
-
Actuator shields (pair)
-
Color-coded system hose kit
-
Two actuator clevis pin sets
-
Actuator rear support brackets (pair) with clamp brackets
-
Complete hardware installation pack
This comprehensive system makes restoring or upgrading your Camaro to Rally Sport specifications straightforward and authentic.
Vehicle Fitment
-
1969 Chevrolet Camaro Rally Sport
Key Features
-
Complete USA-assembled RH and LH headlamp assemblies
-
Includes all mechanical, vacuum, and electrical components
-
Fenderwell templates included for proper modifications
-
490-page assembly manual with step-by-step instructions
-
Heavy-duty protective packaging for secure delivery
-
Ideal for full restorations or conversions to RS style
