Description

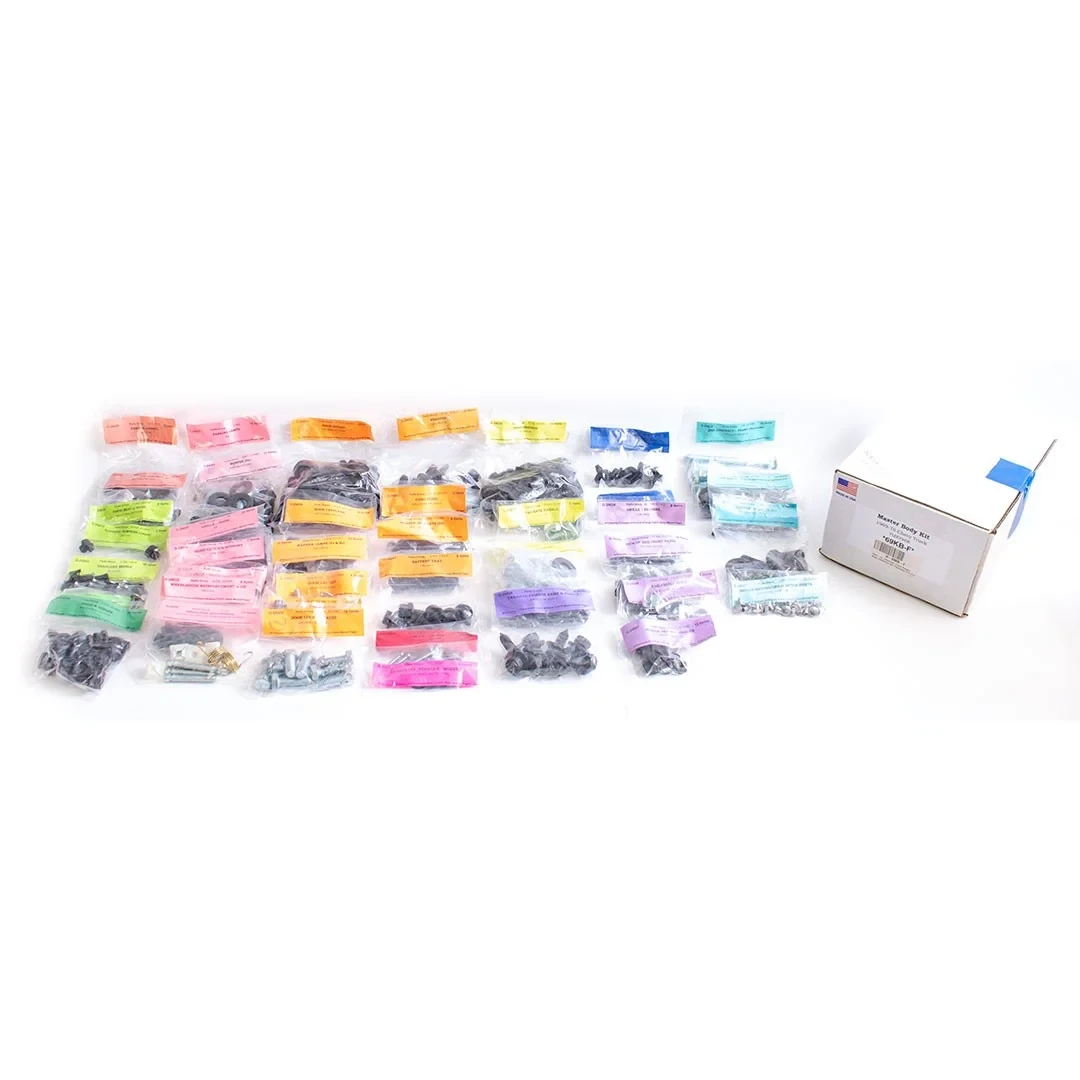

The authentic hardware you need to correctly reassemble the engine components which attach to the long-block. Most fasteners are either meticulous reproductions or New Old Stock. Most items are made in USA to the same standards required by Chrysler. Note: Image is for reference only, actual kit will vary
| Part# | Application | Notes | Pcs |
|---|---|---|---|
| C-8084 | Engine Insulator > Eng Brkt - exc HEMI | HX Nuts, Coni WA's | 4 |
| C-8087 | Engine Mount Brackets - 273/318/340 | HX Bolts, 5/8 AF Nuts, Flat WA's | 18 |
| C-8088 | Engine Insulator > Body - V8 exc HEMI | HX Bolts "38", Coni WA's | 4 |
| C-8094 | Trans INsulator > Trans | HX Coni Sems, Sqr WA's | 4 |
| C-8105 | Strut Rod > K-Frame (B & E body) | 5/4-11 Lock Nuts | 4 |
| C-8106 | Driveshaft > Flange | Straps, HX Bolts, Split WA's | 10 |
| C-8110 | Shocks (Fr) - Lwr Mounting | 7/16 HX Bolts "TR" or "D", Lock Nut | 4 |
| C-8111 | Stabilizer Bar Center Supports (B & E body) | HX Bolts "H", Coni Sems, Lock Nuts | 16 |
| C-8112 | Leaf Spring Mounting @ Front | Hub Bolts, Coni Keps | 16 |
| C-8113 | Shackles - Nuts Only | HX Nuts | 4 |
| C-8115 | Axle Housing > Springs | 1/2-20 x 7.12 U-Bolts, Lock Nuts | 12 |
| C-8117 | Suspension Bumper Brkt > 8 3/4 Axle | HX Coni Sems "Anchor" | 2 |
| C-8120 | Shocks (Rr) - Lwr Mounting | HX Nuts Only | 2 |
| C-8123 | Shocks (Rr) - Upr Mounting | HX Bolts, Lock Nuts | 4 |
| C-8124 | Steering Gear (B body) | HI-HX Bolts, Slit WA's | 6 |
| C-8131 | Gas Tank | J-Bolts, Lock Nuts | 4 |
| C-8133 | Differential Carrier - 8 3/4 | Nuts w/ Nylon Patch | 10 |
| C-8176 | Suspension Bumpers (Fr) | Cone Lock Nuts | 4 |
| C-8177 | Brake Drum Retainers | 1/2" Stud, Green Push on Retain | 6 |
| C-8178 | Steering Linkage | Tri-slot Nuts, Cotter Pins | 12 |
| C-8200 | Trans Crossmember | Flng Bolts, Flng Nuts | 8 |
| C-8202 | Brake Cable Tension Adjuster | Flange Lock Nut Only | 1 |
| C-8203 | Proportioning Valve > Apron | Red Flange Lock Nut | 1 |
| C-8212 | Control Amrs (Upr) | Cam Bolts, Washers, Nuts | 16 |
| C-8214 | Leaf Spring Mounting @ Front | "H" Marked Bolts, Marsden Nut | 4 |
| C-8215 | Idler Arm | "TR" Hex Bolt, Tri-Slot Nut, Pin | 3 |
| C-8216 | K-Frame > Body | Special Hex Coni Sems | 4 |
| C-8222 | Axle Retaining Nuts | HX Lock Nuts, Flng Nuts | 10 |
| C-8223 | Ball Joints w/ Drum Brakes | HX Bolts, Sloted Nuts, Pins | 12 |
| C-8226 | Pitman Arm | Nut, Split WA | 2 |
| C-8227 | Nrake Assembly (front drum) > Spindle | HX Bolts, Split WA's, Nuts | 12 |
| C-8228 | Brake Hoses > Bracket Clips | U-Clips | 3 |
| C-8330 | Parking Brake Control > Body | HX Coni Sems, Coni Keps | 3 |
| C-8332 | Master Cylinder | HX Lock Nuts | 4 |
| C-8334 | Master Cylinder Support Plate | Coni Keps, EXT Keps, Sealer | 4 |
| C-8336 | Brake Booster | HX Lock Nuts | 4 |
| C-8337 | Wheel Cylinders (4) w 1/4-20 | HX Flng Screws | 8 |
| C-8338 | Accelerator Pedal (B & E body) | Coni Keps, Coni sems | 6 |
| C-8339 | Trans Insulator > Crossmember | HX Bolt, Flat WA, Lock Nut | 3 |
| C-8440 | Suspension Bumpers (Rr) | HX Flng Screws | 4 |
This fits:
